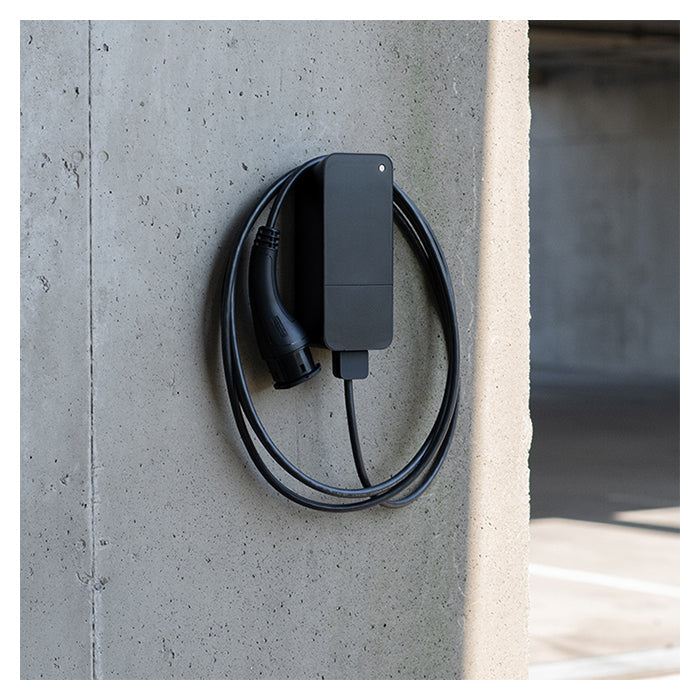

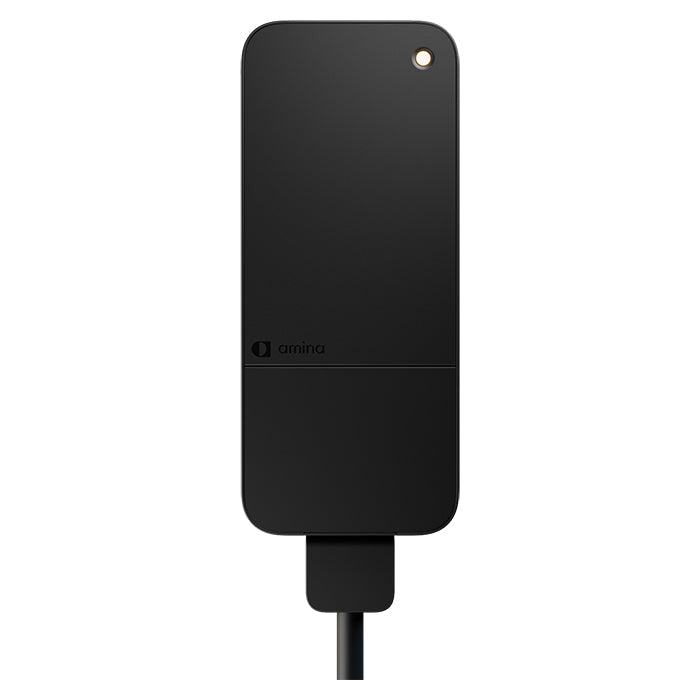

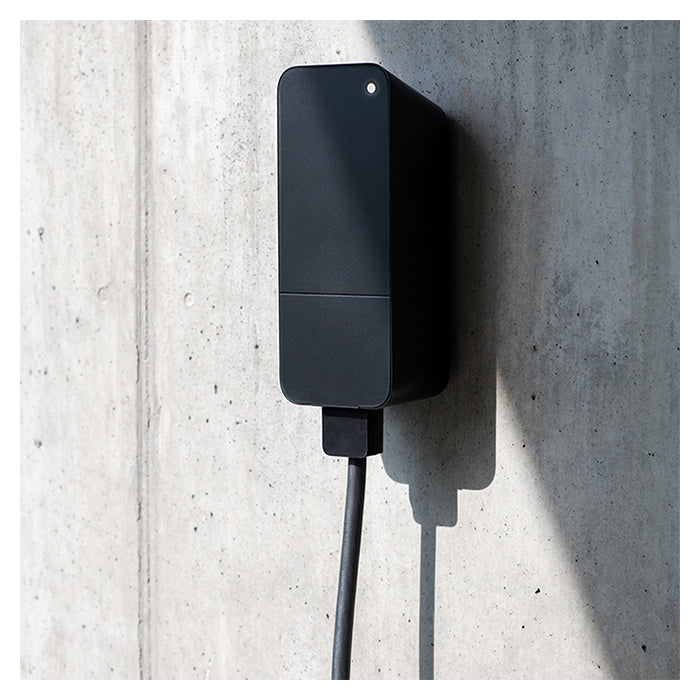

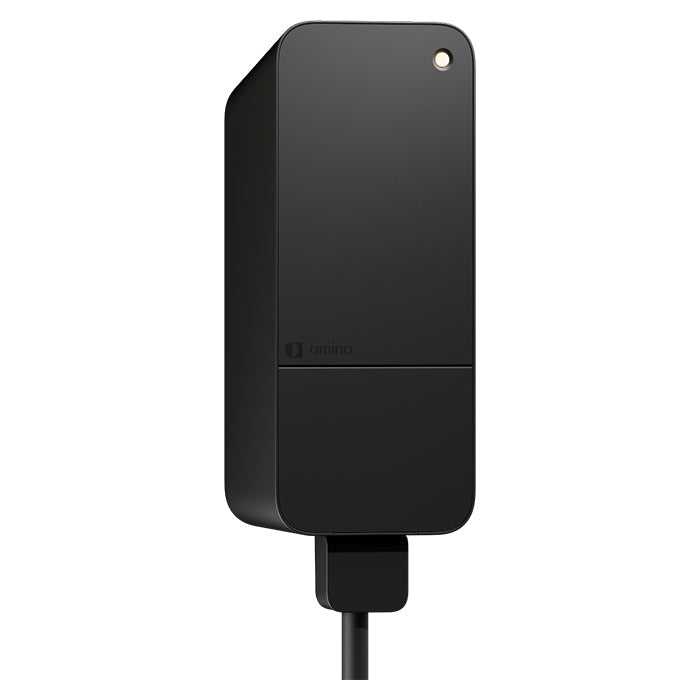

Amina S EV Charger 11kW/20A 3-Phase 6 Metre

Amina S EV charger 11kW/20A 3-phase with 6 metre cable

The EV charger made for your car and designed for your home.
The Amina S combines power, elegance and intelligent technology in one compact charging unit. It delivers up to 11 kW of charging power, wrapped in a Scandinavian design that suits your home perfectly.

Designed and manufactured in Norway, the Amina S is built to withstand the Nordic climate while remaining discreet, space-saving and user-friendly. With a 6 metre fixed cable, a 35% thinner lead and a weight of just 1 kg, this is one of the lightest and most practical chargers on the market.

The Amina S is also future-proofed with Zigbee and Bluetooth technology, so it can be integrated with your smart home, and it automatically adjusts its LED light to the surroundings. It is made to last – dust, water and impact resistant.

How the Amina S charger works:

The charger is plug-and-play – simply connect the cable to the car and the car takes care of the rest.

Most modern electric cars let you control charging directly from the car's dashboard or via an app. Here you can easily set when charging should start and stop, or choose a time by which the car should be fully charged. The car automatically sends this information to the charger, which then follows the schedule you have set up.

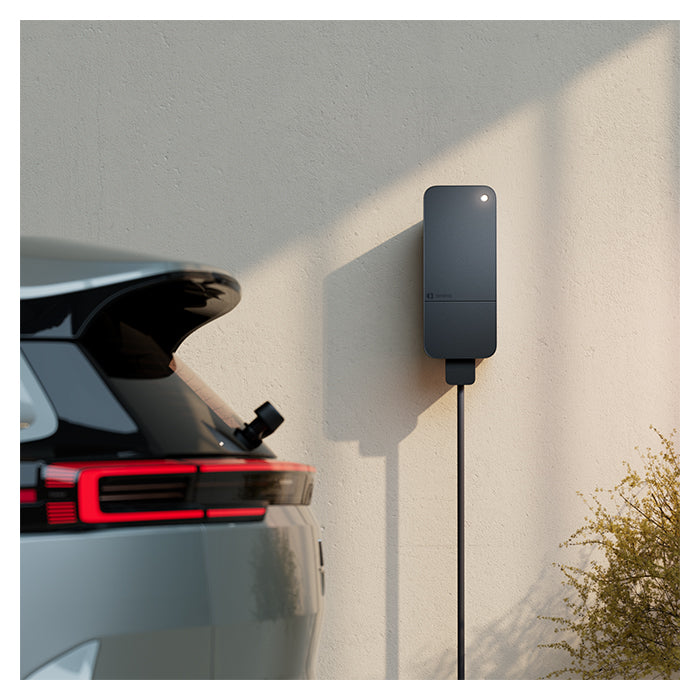

Whether you drive an electric or a hybrid car, the Amina charging unit suits your vehicle. It is flexible and ready for both current and future cars.

• Charging up to 11 kW
• 20A 3-phase

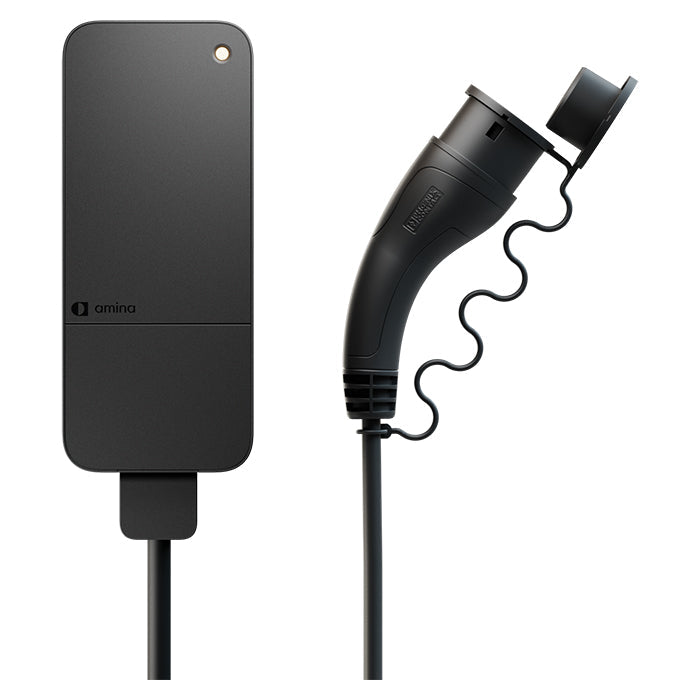

• Compatible with all electric and hybrid cars via a Type 2 charging cable

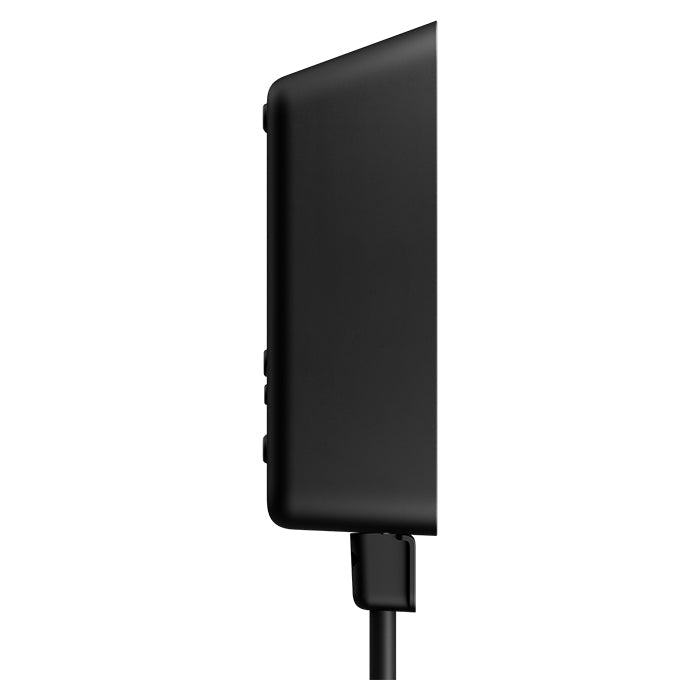

• Lightweight design – just 1 kg and 89 mm deep, ideal for tight spaces
• 6 metre fixed cable – 35% thinner for easy handling and a smaller environmental footprint

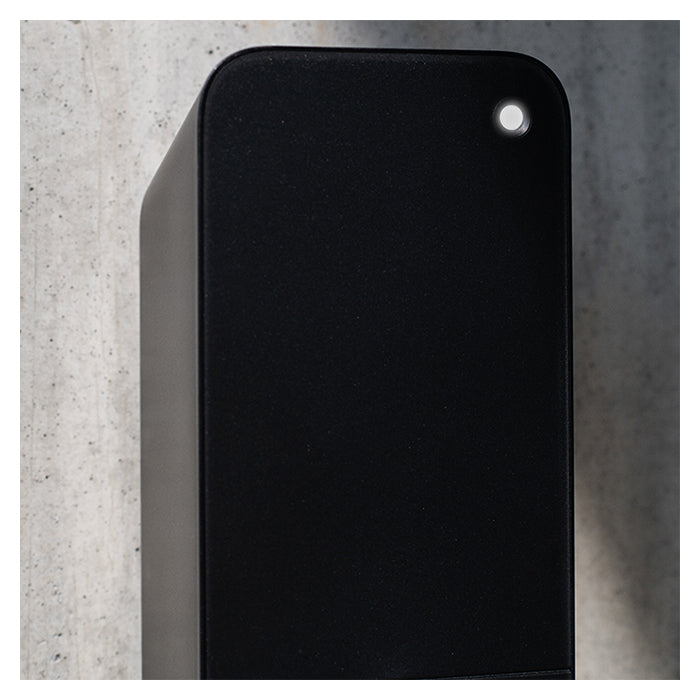

• Light-sensitive sensor – automatic LED adjustment to the surroundings
• Future-proof smart home integration via Zigbee and Bluetooth
• Built for Nordic conditions – resistant to impact, dust and water
• Quick installation – developed in collaboration with electricians
• Scandinavian design – simple, discreet and stylish
• IP54 - indoor and outdoor use
• Integrated residual current protection - RDC-DD (6mA DC)
• An RCD type A (30 mA) can be used in the fuse board

Technical specifications:

Details and dimensions

• Number of phases: 3-phase
• Current rating: 20A
• Maximum power: 11kW
• Dimensions (h x w x d): 264mm x 112mm x 89mm
• Weight: 1 kg without cable, 2.4 kg (20A)
• Cable: 6 metre Type 2
• Operating temperature: -30°C to +40°C
• Protection rating: IP54
• Bluetooth: Yes
• Zigbee: Yes
• RFID: No
• App: No
• Colour: Black
• Material: Polycarbonate
• Finish: Matt

Power and connectivity

• Communication interface: Zigbee, Bluetooth LE
• Charging power (20A variant): 3-phase 3.7–13.8 kW / 1-phase 1.4–4.6 kW
• Integrated residual current protection: RDC-DD (6mA DC)
• Electrical classification: Class I equipment, overvoltage category III (4 kV)
• Energy metering: Integrated energy meter with +/- 2% accuracy
• Degree of protection: IP54 (indoor/outdoor), IK08 (impact protection), UL94-5VB (fire tested), UV resistant

Standards and approvals

• RED 2014/53/EU
• EN IEC 62311:2020
• DA IEC 61851-1:2019
• EN 62196-1:2014
• DA 62196-2:2012 +A11:2013+A12:2014
• IEC 62955:2018
• EN IEC 61851-21-2:2021
• EN 301 489-1 v2.2.3
• EN 301 489-17 v3.2.4
• EN 300 328 v2.2.2
• RoHS 2011/65/EU
• EN IEC 63000:2018

The package contains

• Back plate
• Charging unit
• Front cover
• Charging cable 20A
• Installation kit
• English manual


5-year warranty
