Avant EV Charger 11/22kW/32A 3-Phase 7 Metre

EV charger 11/22kW/32A 3-phase with 7 metre cable

Fast, easy and reliable charging of electric and plug-in hybrid cars with this charging unit. 32 amp, 3-phase charging cable, allowing charging at up to 22 kW.

See how to set up the charger

The charger has a Type 2 connection to the car and fits most vehicles. The cable is 7 metres long and is ideal for private and public use. The extra cable length gives you great everyday flexibility, whether your car is parked in a carport, on the driveway or in a parking space. The cable comes with a holder for the charging handle, so it is always easily accessible and neatly stored.

The charger comes with features such as RFID cards and app control via the TUYA app. 3 RFID cards are included with the unit, so you can easily control access to the charger, ideal if several users need access, for example in a shared carport or housing association. It also offers Bluetooth configuration and WiFi for easy connection to your home network. The charger is TÜV Rheinland approved and IP65 rated, making it well suited to outdoor use. It operates in temperatures from -35°C to +50°C.

• Type 2 connector
• 32A 3-phase
• Up to 22 kW charging
• 7 metre cable incl. holder for the handle
• Mounting plates x 2
• Danish menu
• App control – TUYA
• RFID key cards – 3 pcs
• Bluetooth and WiFi
• TÜV Rheinland approved
• IP65 rated
• Cable specification: 5G6mm² + 1-2x0.5-0.75mm²
• Operating temperature: -35°C to +50°C
• Charging standard: IEC 61851-1 / IEC 62196-2
• Built-in DC fault current detection with a trip current of 6 mA

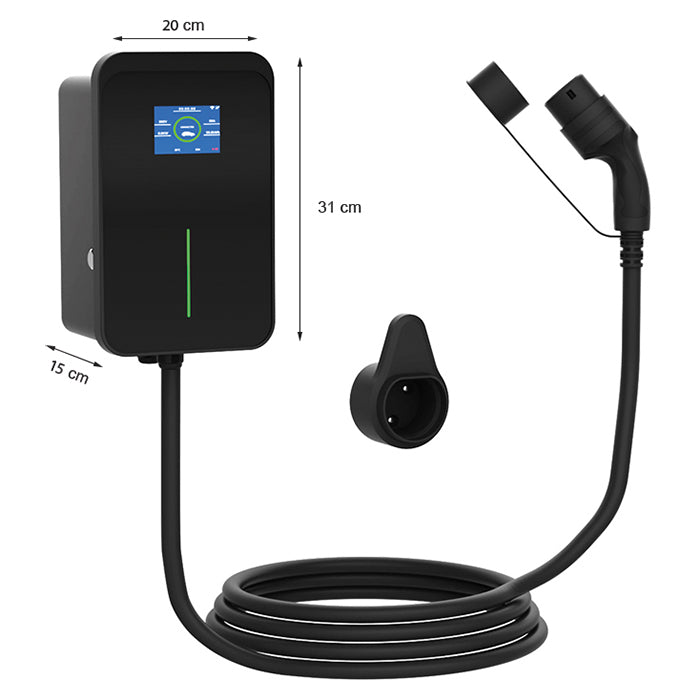

• Unit dimensions (WxHxD): 20 x 31 x 15 cm

App control via the TUYA app

Using your Android or Apple smartphone, you can control your charger with the TUYA app. Start or stop a charging session, adjust the current (the unit can be turned down to 6 amps via the app), or set charging time intervals and charge your car at the times of day when electricity is cheapest. See the manual and explore the many possibilities this charger offers.

Legal requirements for installing a charger in Denmark (per the Danish Safety Technology Authority)

According to the DS/EN 60364-7-722 standard and the applicable installation regulations (in force since 1 July 2017), the following applies:

• RCD protection is required at all EV charging points, both at sockets and at fixed charging units.
• An RCD type A (30 mA) may be used if the charger has built-in DC fault current detection up to 6 mA. This complies with the applicable standard.
• If the charger does not have DC detection, the installation must instead be fitted with an RCD type B (30 mA), which can handle DC fault currents above 6 mA.
• The installation must be carried out by an authorised electrician, and a verification test of the RCD must be performed before commissioning.

PLEASE NOTE: This charger must be connected by an authorised electrician in accordance with applicable Danish legislation. This ensures a correct, safe installation and compliance with electrical safety regulations.
