Chargr EV Charger 11kW/16A 3-Phase with 5 m Coiled Cable and App

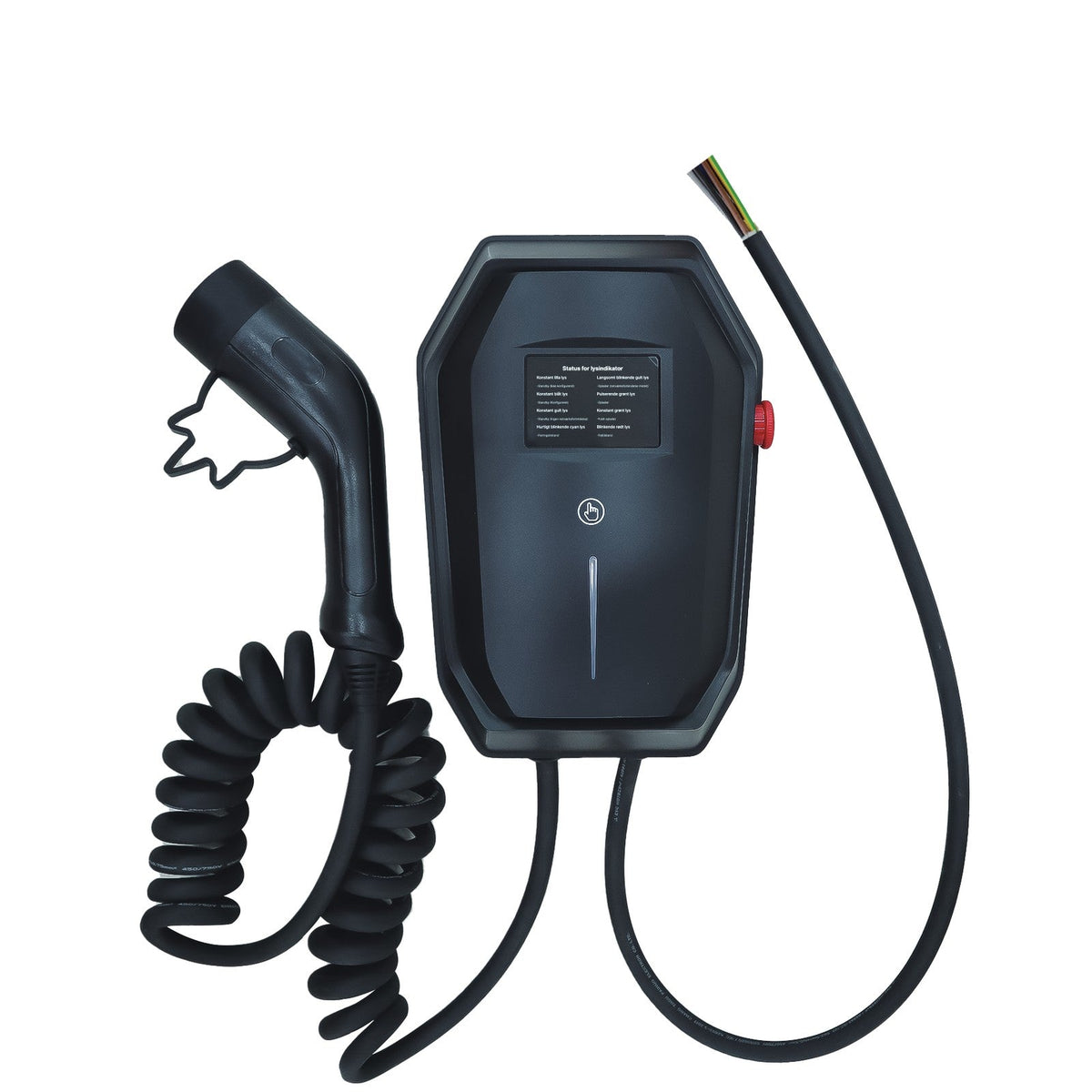

Chargr EV charger – 11 kW with 5 m coiled cable and app

A compact home charger with up to 11 kW (3-phase, 16A) and a practical 5 metre coiled cable with a Type 2 connector. The coiled cable retracts when not in use, so it doesn't lie around on the floor – and it can be wound around the charger, which doubles as a cable holder.

The charger fits most electric cars and plug-in hybrids (BEV, PHEV, HEV and EREV) with a Type 2 connector.

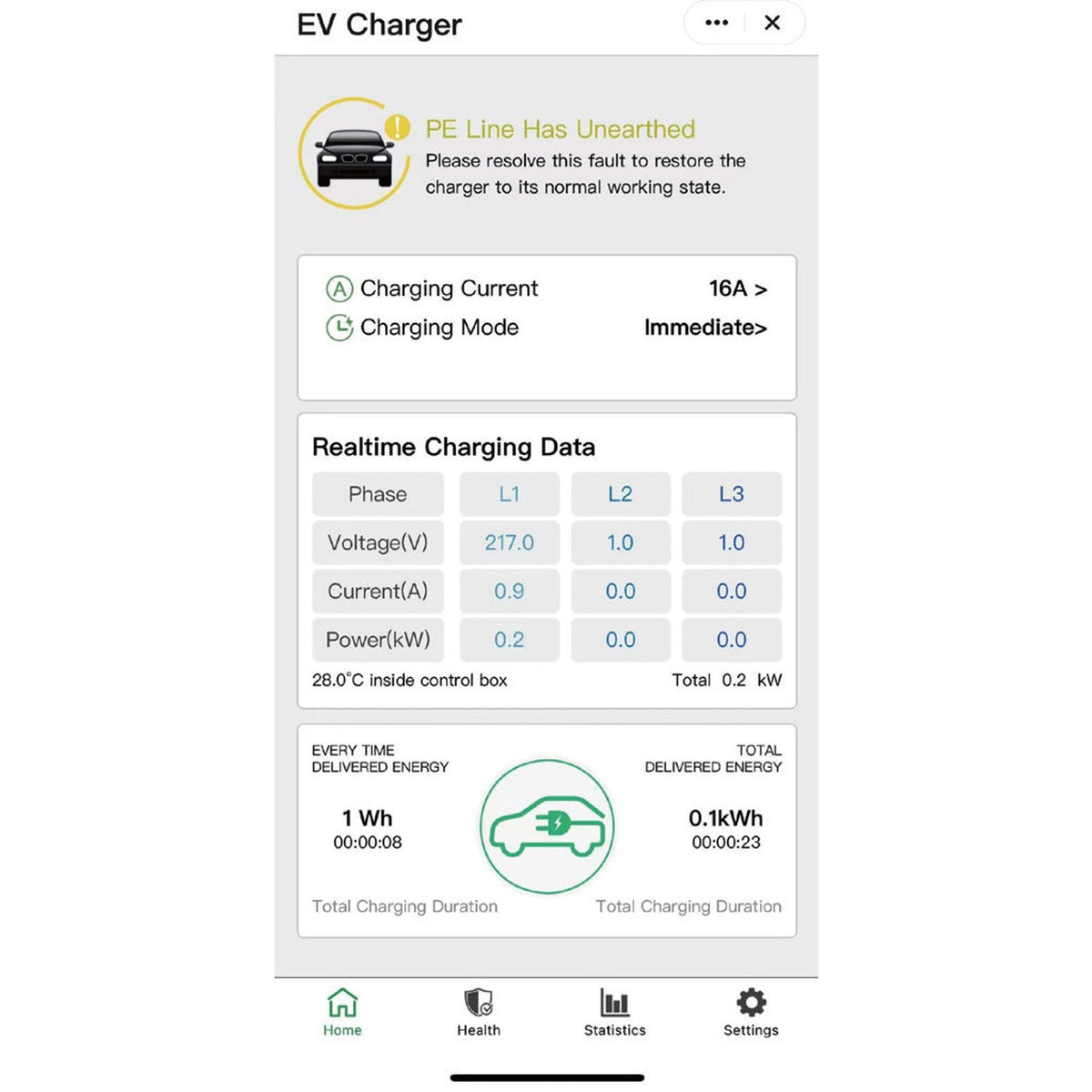

Control charging from your phone

Connect the charger to your Wi-Fi (2.4 GHz) and control it in the Smart Life app:

• Instant charging – starts automatically when the car is plugged in
• Scheduled charging – choose a start and end time, e.g. when electricity is cheapest
• Delayed charging – start charging after a chosen number of hours
• See charging current, voltage and power per phase, energy use and charging time
• Fault log and self-test, so you can see if something is wrong

Features

• Up to 11 kW – adjustable charging current: 8A, 10A, 13A or 16A
• 5 metre coiled cable with Type 2 connector
• 3.5" LCD touchscreen and push button on the front
• Status light: blue = ready, green = charging, red = fault
• Emergency stop/switch
• Built-in DC 6 mA residual current protection – a standard type A RCD (30 mA) can be used in the fuse box
• Self-test of residual current protection, earthing, overload, over- and undervoltage and overtemperature
• Enclosure fire rating UL94V-0

Specifications

• Charging standard: Mode 3, IEC 62196 (Type 2)
• Max. power: 11 kW
• Charging current: 8A / 10A / 13A / 16A
• Input voltage: 85–415 V, 50–60 Hz
• Display: 3.5" LCD touchscreen
• Connectivity: Wi-Fi (2.4 GHz) and Bluetooth
• Operating temperature: -20 to 50 °C
• Cable length: 5 metres (coiled)

Installation

The charger is mounted on the included wall bracket and must be connected by a qualified electrician in accordance with local regulations. Make sure the earthing is good – an earth resistance below 100 ohms is recommended.
