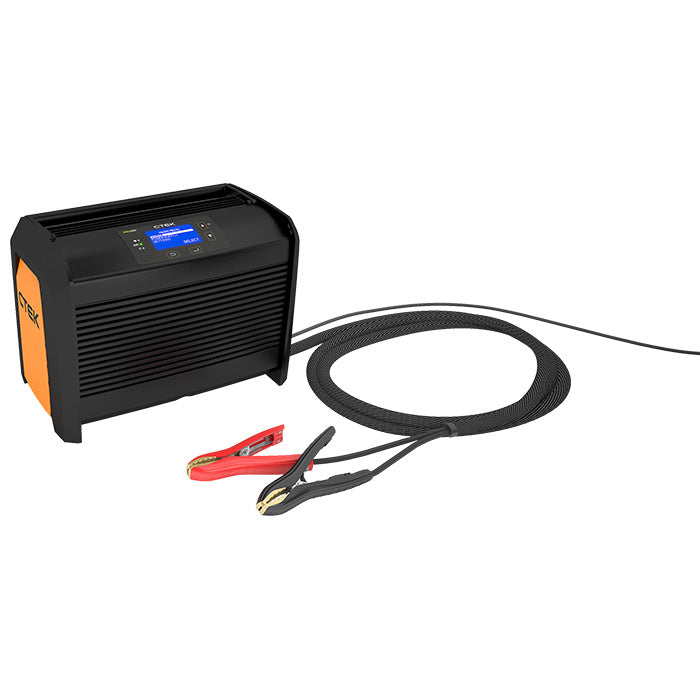

CTEK PRO120 Charger and Diagnostic Instrument

CTEK PRO120 is an advanced 120 A battery charger and power supply, designed to cope with even the most demanding power requirements. With advanced design, technology and outstanding features, it is the obvious choice for professional battery charging, maintenance and support in modern diagnostic workshops.

Also suitable for hybrid and electric vehicles. NOTE: Check the vehicle manufacturer's guidelines before use.

Features:

• Innovative technology and ultimate design: Convection cooling eliminates the need for cooling fans, increasing operational efficiency and reliability.
• Compatible with all chemistry types: Suitable for all types of 12 V lead-acid batteries and lithium LiFePO4.
• Variable voltage selection: Choose from 12.6 V to 14.8 V in 0.1 V increments. The "Memory Saver" mode supplies power and retains vehicle settings if the battery is removed.
• Quick and easy to use: A new and unique "automatic adaptive" charging mode automatically recognises the battery's size and any parallel loads and applies the most optimal settings, providing the fastest charge. A simple and clear user interface – four buttons and a clear LCD display.
• Safe and highly stable: Spark-free and protected against reverse polarity, class-leading EMC protection, low-voltage ripple and low-current ripple, protection against input voltage fluctuations, and protection against cracking.

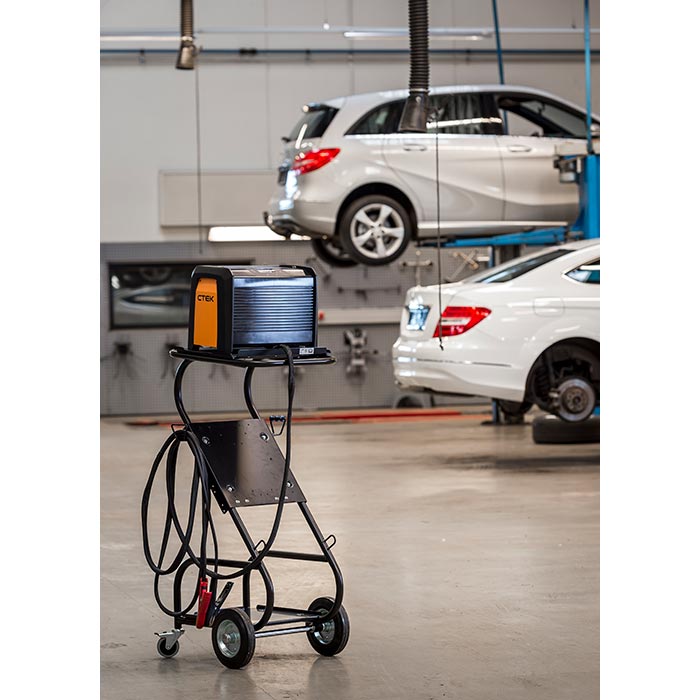

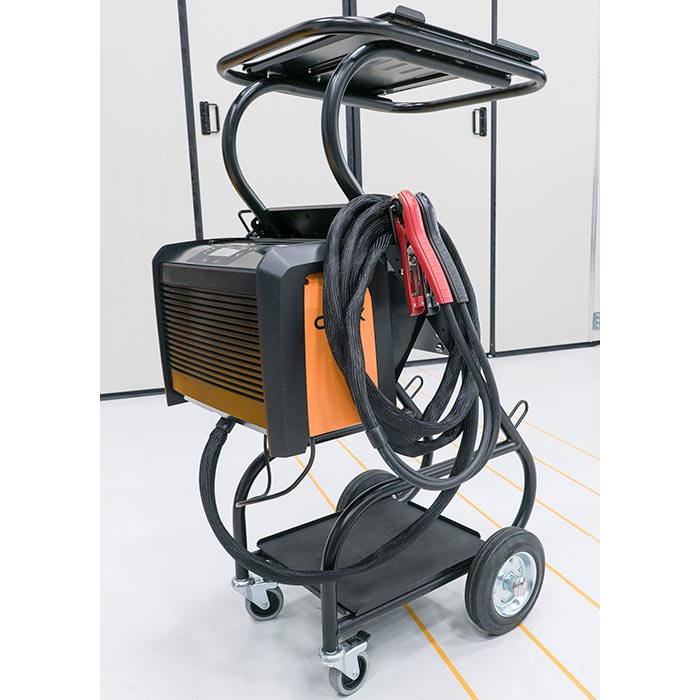

• Portable and durable: Supplied with 5-metre cables and hard-wearing clamps. Sturdy, fracture-resistant housing and foldable carry handle. Compatible with CTEK Trolley PRO (accessory required).

Specifications:

• Input voltage: 220-240 V, 50-60 Hz, 4.6 A
• Output voltage: 12 V, 120 A
• Start voltage: 0.8 V (minimum voltage for detecting a connected battery)
• Return current drain: Less than 2 Ah/month
• Ripple current: Below 4%
• Ripple voltage: Below 4%
• Temperature range: -20°C to +50°C

Battery types:

• Lead-acid: Wet, Ca/Ca, AGM, EFB (Start/Stop types) and gel
• Lithium: LiFePO4

Battery capacity:

• Lead-acid: 10-3000 Ah
• Lithium: 15-1200 Ah

• Insulation class: IP40 rated (indoor use)
• Charging cable length: 5 m (DC cable)
• Power cable length: 2.5 m (AC cable)
• Temperature compensation: Built-in temperature sensor
• USB: Type B USB port for software updates and servicing
• Net weight in kg (unit with cables): 13.77 kg
• Gross weight in kg (unit in box): 16.02 kg
• Dimensions in mm (HxLxW): 408x226x284 mm
