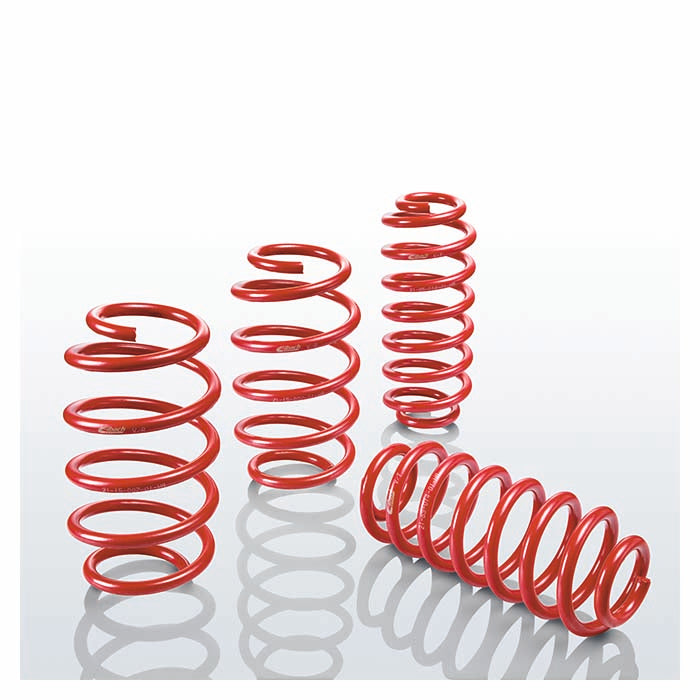

Eibach Sportline Skoda Superb/VW Passat Variant

Eibach Sportline sports lowering springs

Aggressive sports lowering for demanding car enthusiasts – maximum performance and looks. Fits SKODA SUPERB IV (NZ3), SKODA SUPERB IV KOMBI / ESTATE (NZ5) and VW PASSAT VARIANT B9 (CJ5).

• Aggressive lowering of approx. 35–45 mm for a striking sporty look
• Lower centre of gravity = improved cornering stability and steering response
• Chrome-silicon spring steel with corrosion-protective coating
• TÜV-approved – ABE or parts certificate included
• Recommended in combination with sports shock absorbers (e.g. Bilstein B8)
• Premium quality – Made in Germany
• SKODA SUPERB IV (NZ3) (1.5 TSI MHEV) – 11.23 -
• Lowering at the front (approx.): 45-50 mm
• Lowering at the rear (approx.): 35-40 mm
• Max. front axle load: 1095 kg
• Max. rear axle load: 1110 kg
• Spare parts (springs): F21-15-021-02-VA, F21-79-016-03-RA, M45-85-014-01-01
• Spare parts (dampers): M45-81-020-01-01
• Notes:
• A: General fitting notes – available from Eibach.de
• 18: Except vehicles with self-levelling suspension.

20: Except vehicles with 4WD/four-wheel drive.

170: For vehicles with a multi-link rear axle (independent suspension).

323: For vehicles with heavier equipment versions (e.g. spare wheel, tow bar, glass roof etc.), VW spring pads 5Q0 512 149 G (9 mm) or 8J0 512 149 (13 mm) may optionally be used.

• SKODA SUPERB IV KOMBI / ESTATE (NZ5) (1.5 TSI MHEV) – 11.23 -
• Lowering at the front (approx.): 45-50 mm
• Lowering at the rear (approx.): 35-40 mm
• Max. front axle load: 1095 kg
• Max. rear axle load: 1110 kg
• Spare parts (springs): F21-15-021-02-VA, F21-79-016-03-RA, M45-85-014-01-01
• Spare parts (dampers): M45-81-020-01-01
• Notes:
• A: General fitting notes – available from Eibach.de
• 18: Except vehicles with self-levelling suspension.

20: Except vehicles with 4WD/four-wheel drive.

170: For vehicles with a multi-link rear axle (independent suspension).

323: For vehicles with heavier equipment versions (e.g. spare wheel, tow bar, glass roof etc.), VW spring pads 5Q0 512 149 G (9 mm) or 8J0 512 149 (13 mm) may optionally be used.

• VW PASSAT VARIANT B9 (CJ5) (1.5 eTSI) – 10.23 -
• Lowering at the front (approx.): 45-50 mm
• Lowering at the rear (approx.): 35-40 mm
• Max. front axle load: 1095 kg
• Max. rear axle load: 1110 kg
• Spare parts (springs): F21-15-021-02-VA, F21-79-016-03-RA, M45-85-014-01-01
• Spare parts (dampers): M45-81-020-01-01
• Notes:
• A: General fitting notes – available from Eibach.de
• 18: Except vehicles with self-levelling suspension.

20: Except vehicles with 4WD/four-wheel drive.

170: For vehicles with a multi-link rear axle (independent suspension).

323: For vehicles with heavier equipment versions (e.g. spare wheel, tow bar, glass roof etc.), VW spring pads 5Q0 512 149 G (9 mm) or 8J0 512 149 (13 mm) may optionally be used.

• Approval: TÜV parts certificate
• Part no.: E20-79-017-01-22
